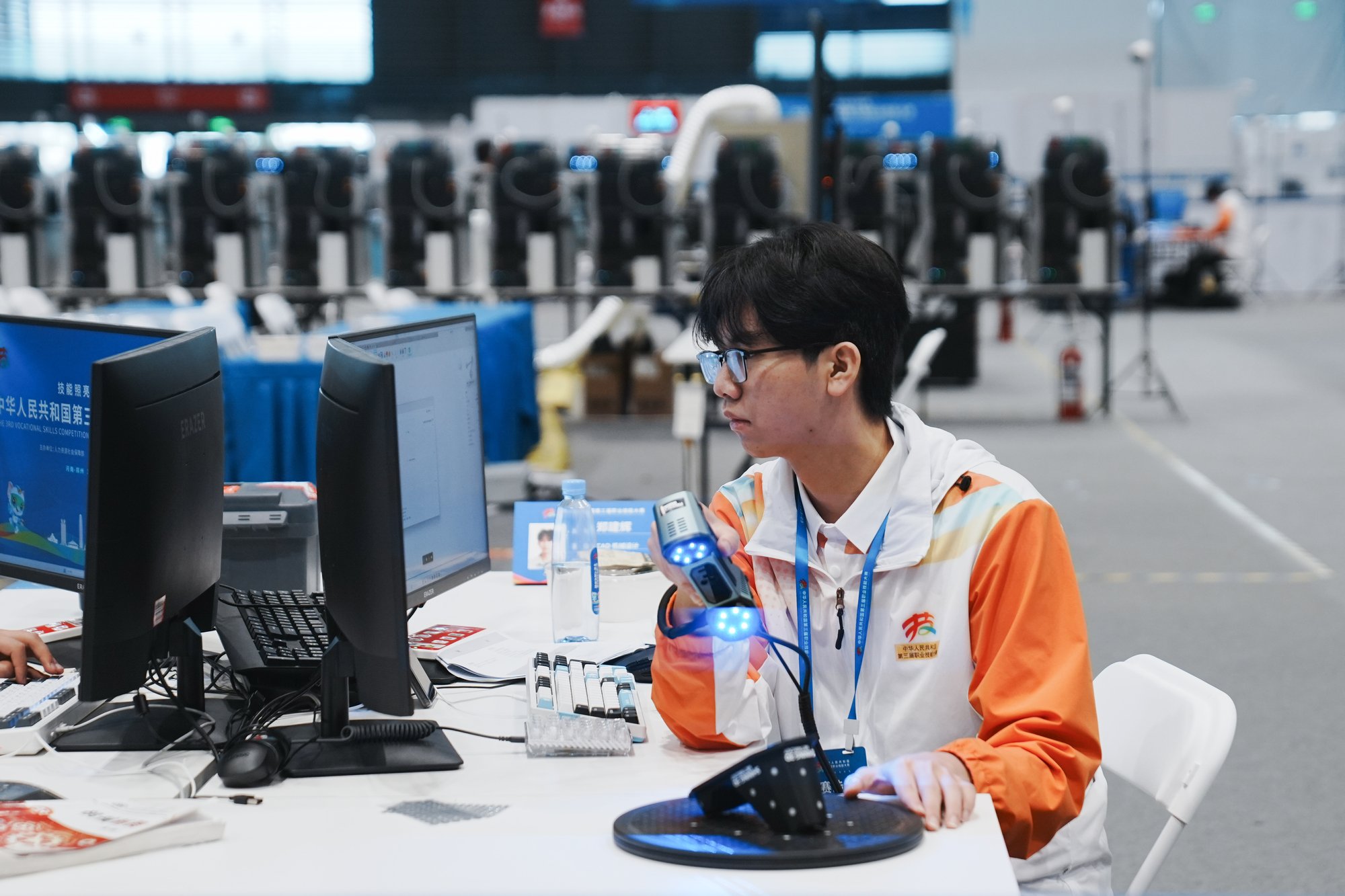

Yes. Infrared light source scanning can be used to scan human body.
FreeScan Combo Series
Multifunctional Metrology Laser 3D Scanner
- Blue laser & Infrared light
- Accuracy of 0.02mm
- Powerful and ergonomic
- Reddot winner 2024
Key Features
Compact and Powerful Metrology
Packs dual light sources in an ultra-compact shell, measuring just 193 x 63 x 53 mm. It’s equipped with both blue laser and infrared VCSEL technology and weighs only 620g.
Metrology-grade Accuracy
Accuracy 0.02mm, delivers consistent scanning results with high precision.
Versatile Dual Light Scanning
An innovative combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios.
Multiple Scanning Modes
Up to 25 cross laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details, and a single laser line for deep hole and pocket area scanning.
Lightweight and Compact

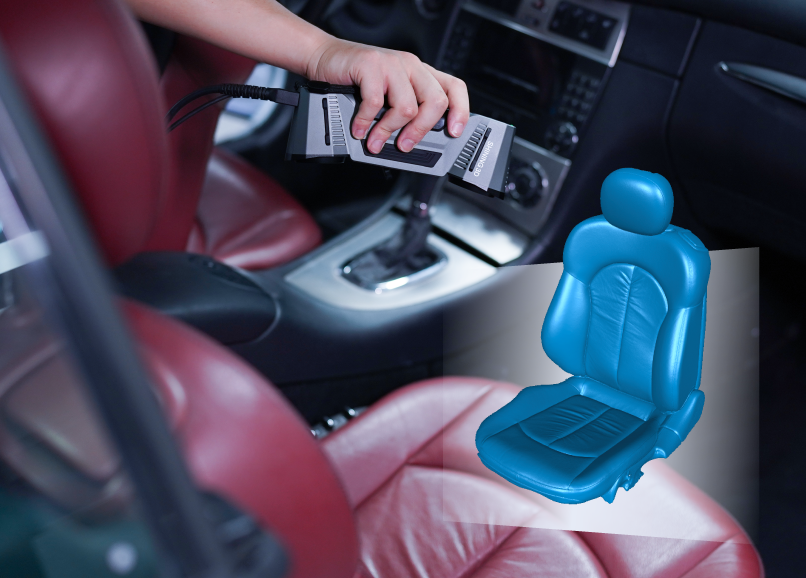

The lightweight and ergonomic design of the Combo Series allows for use in a variety of narrow and complex environments.

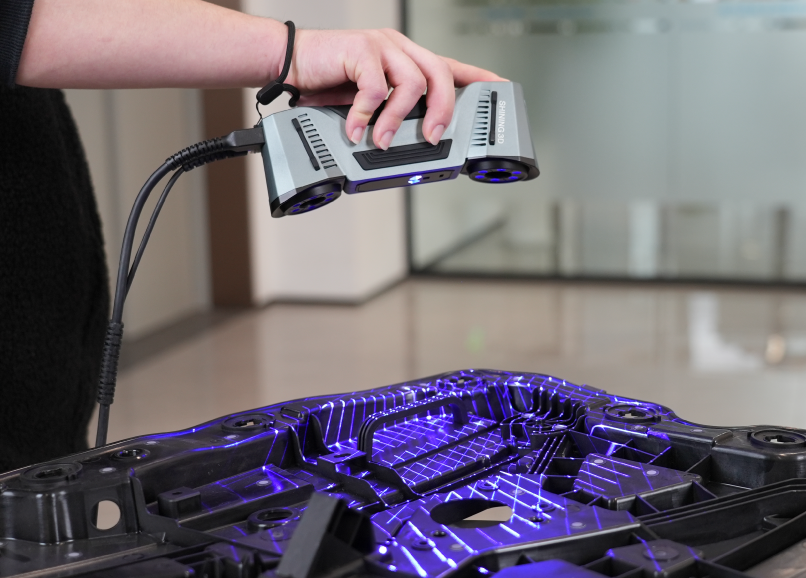

Blue Laser & Infrared Light

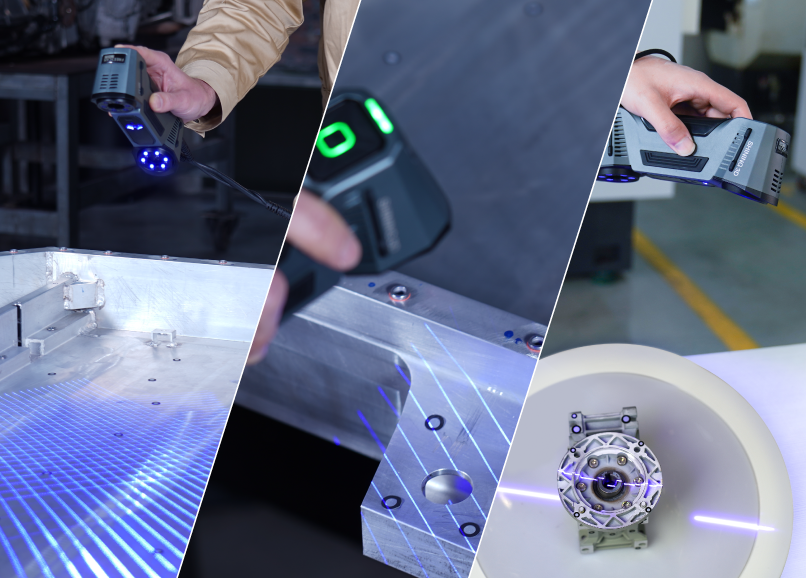

Four 3D Scanning Modes to Cover All Types of Workpieces

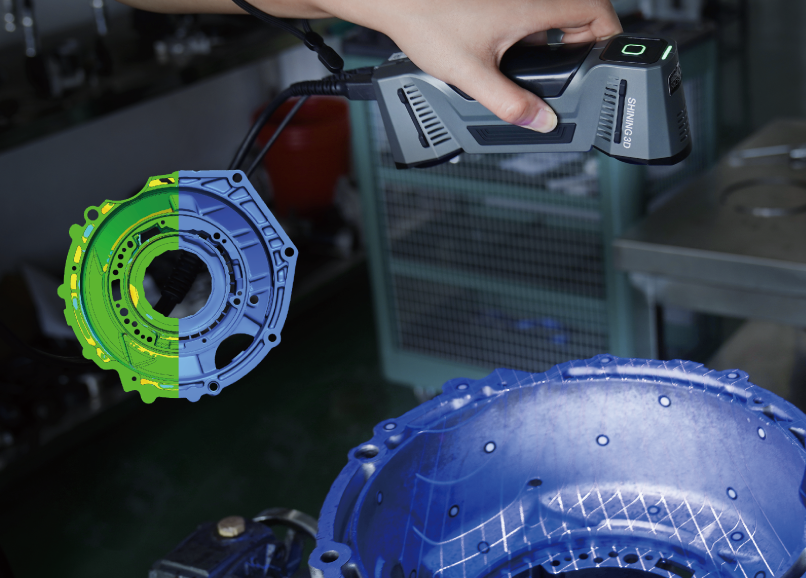

A Wise Choice for Metrology

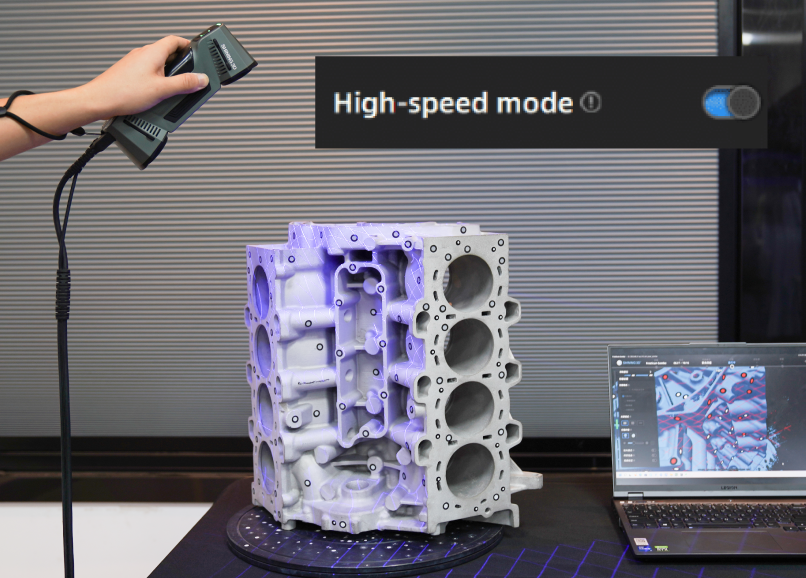

Fast Scan Speed
Powerful and Ergonomic
Infrared Light Scanning
Softwares
FreeScan Software
No subscriptions, no hidden fees.
SHINING 3D FreeScan Combo Series 3D Scanners come with access to our powerful and continuously updated software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-by-step Guidance
The FreeScan software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
Multiple Scan Modes
With FreeScan software, the Combo supports four kinds of scanning modes, providing users with the flexibility to choose according to their needs.
AI Data Cleanup
FreeScan software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, delivering more ideal results.
Adjustable Resolution
FreeScan software can select corresponding solutions based on different scanned samples, making it more flexible in meeting various scanning requirements.
Specs
Technical Data
- High-speed scanning
- 50 or 26 laser lines
- Deep pockets
- 1 single line
- Volumetric accuracy
- 0.02 + 0.033 mm/m
- Max. FOV
- 520 × 510 mm / 600 × 600 mm
- Point distance
- 0.05 ~ 10 mm / 0.1 ~ 3 mm
- Certifications
- CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
- Detailed scan
- 7 laser lines
- Accuracy
- 0.02 mm
- Weight
- 620g
- Volumetric accuracy (w/ photogrammetry)
- 0.02 mm + 0.015 mm/m
- Scan speed
- Up to 3,600,000 points/s
- Accuracy certification
- VDl/VDE 2634 Part 3 (ISO 17025 certificated lab)
Faqs
Frequently Asked Questions
Is it possible to scan without applying markers on object?
Yes. FreeScan Combo is a dual light source scanner, and the infrared light source can be used to quickly scan feature-rich workpieces without the need for markers on the surface.
Is it possible to scan color texture of objects?
No. FreeScan Combo doesn’t have a color camera to capture the texture information of object.
How can I scan a deep hole?
FreeScan Combo offers four scanning modes to choose from. Use one single blue laser line to obtain deep-hole data.
When do I need to calibrate the 3D scanner?
1. When using for the first time or after 1-2 weeks of inactivity.
2. If the scanner has been severely shaken or vibrated, like during transport.
3. If accuracy is significantly reduced, causing frequent alignment errors or unrecognized markers.
4. If scanning data is incomplete or the quality has seriously deteriorated.
Can FreeScan Combo scan black or reflective object?

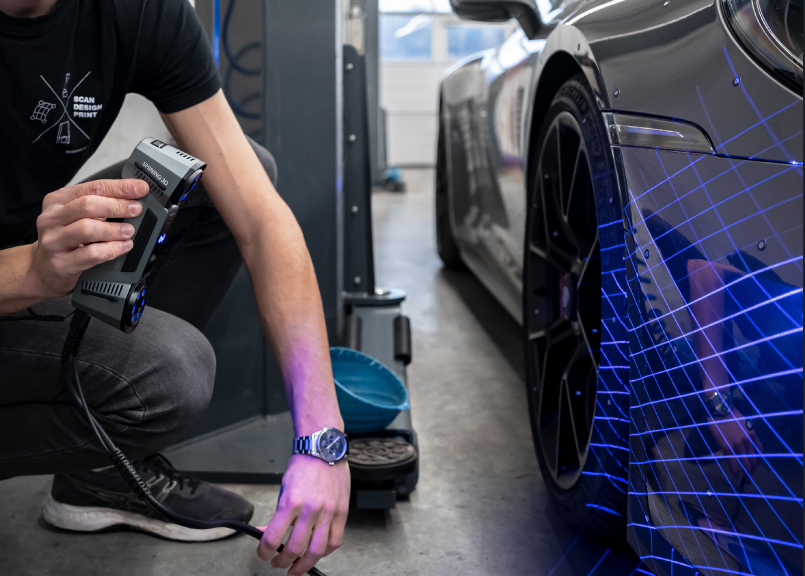

Yes, FreeScan Combo is equipped with blue laser source, which has a very strong adaptability of black and reflective surface.
Can I use FreeScan Combo to scan human body?
